What Is a Pencil Transducer?
When you think of advanced medical devices, a pencil might not be the first thing that comes to mind. However, pencil probes stand out as some of the most advanced and precise tools in modern ultrasound technology. They are characterized by their slim, elongated shape, which resembles a pencil.
This blog takes a closer look at pencil transducers, explaining how they work, exploring their applications, and uncovering their specific application in medical imaging!

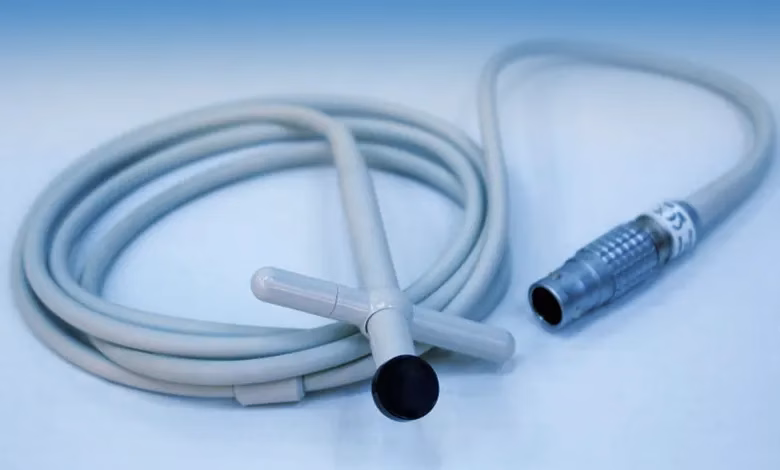

An Introduction to Pencil Transducers
Pencil probes, as their name suggests, are pencil-shaped devices designed to measure blood flow velocity in vessels. They are also known as Continuous Wave (CW) Doppler probes, a unique type of ultrasound transducer typically used to calculate the speed and direction of blood flow.
How Do Pencil Transducers Work?
Generally, ultrasound transducers convert electrical energy into mechanical sound waves, which pass through the body and are reflected to create images of internal structures. However, unlike other types of ultrasound transducers, such as Linear probes, Convex Probes, and Phased Array Probes, a pencil transducer does not provide detailed imaging of the inside of the body. Instead, it measures blood flow velocity using the Doppler effect.
These transducers emit continuous ultrasound waves from one piezoelectric element while another element continuously receives the reflected signals simultaneously.
For example, a pencil probe can be placed over a blood vessel, such as the carotid artery, in cardiovascular exams. In this case, when pencil ultrasound waves hit moving objects like red blood cells, the frequency of the reflected waves shifts. This shift shows precisely how fast the blood is flowing, and the transducer captures this frequency shift, which is then transmitted into information about the flow speed and direction.

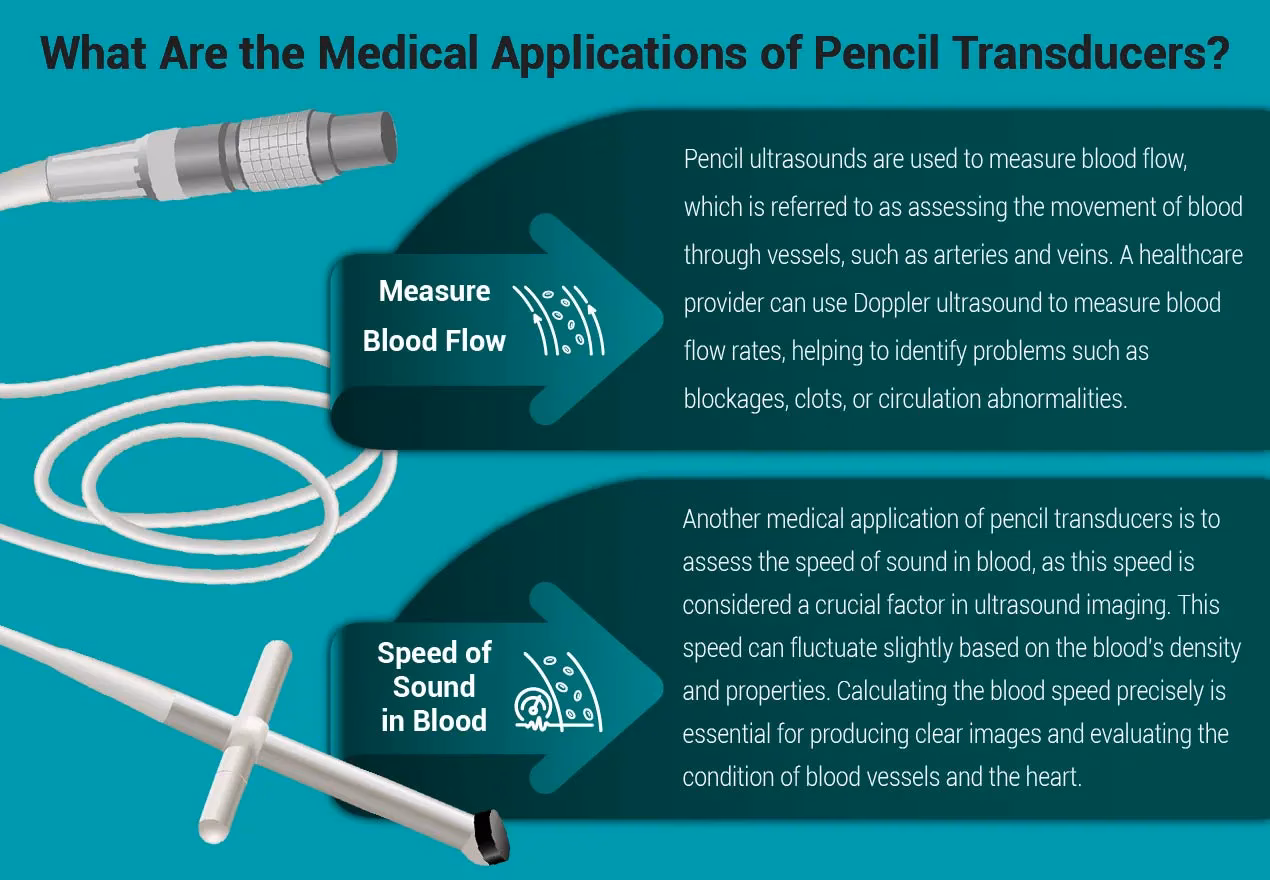

What Are the Medical Applications of Pencil Transducers?
So far, we’ve explored pencil transducers or Doppler probes and their functions. Now, let’s look at two common use cases of pencil probes in medical examinations.
1- Measure Blood Flow
Pencil ultrasounds measure blood flow, which is referred to as assessing the movement of blood through vessels such as arteries and veins. A healthcare provider can use a Doppler ultrasound to measure blood flow rates. This method helps doctors identify problems such as blockages, clots, or circulation abnormalities.
2- Speed of Sound in Blood
Another medical application of pencil probes is measuring the speed of sound in blood. This speed can fluctuate slightly based on the blood’s density and properties. Calculating the blood speed precisely is essential for producing clear images and evaluating the condition of blood vessels and the heart.
Top Brands of Pencil Probes in Medical Imaging
Here is a list of some popular brands of pencil probes along with their top models.
- GE: Some popular models are GE 3CRF-D and GE 3SC-RS.
- Philips: Some popular models are Philips D2cwc CW and Philips D2cwc.
- Siemens: Some popular models are Siemens CW5 and Siemens 2 CW.

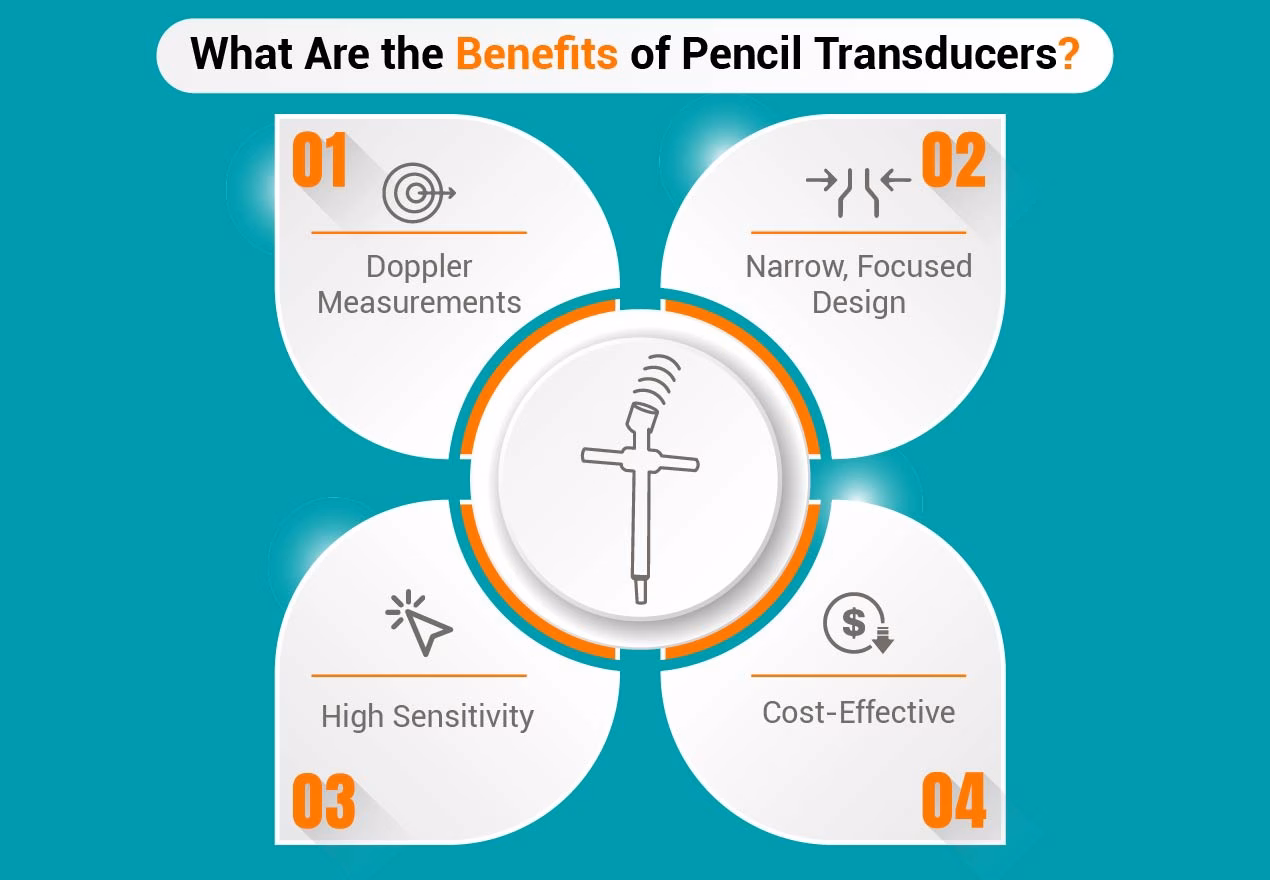

What Are the Benefits of Pencil Transducers?
Pencil transducers differ from other types of ultrasound transducers for several reasons, as below.
1- Doppler Measurements
As mentioned above, pencil transducers are known as Continuous Wave dopplers. In this model, the transducer is designed with two separate crystals: one continuously emits ultrasound waves and another constantly receives the reflected signals, providing uninterrupted, real-time blood flow tracking.
2- Narrow, Focused Design
Pencil transducers feature a slim, narrow design that makes them particularly effective for measuring blood flow. Their specialized shape allows for precise Doppler measurements in vascular studies. For instance, a pencil transducer is commonly used to assess blood flow in the carotid artery, where accuracy and a focused beam are essential.
3- High Sensitivity
Pencil transducers are highly sensitive for blood flow measurement. Therefore, they are ideal for detecting low-volume or deeper flows. These types of flows are often challenging to capture with other probes, such as linear or curvilinear transducers. As a result, pencil transducers play an important role in ensuring accurate detection in specialized diagnostic applications.
4- Cost-Effective
Pencil transducers are generally less expensive than more advanced imaging probes, such as phased arrays or curvilinear transducers. Additionally, their minimal design (fewer elements, simpler mechanics) may lead to lower maintenance costs and potentially longer lifespan.
What Are the Limitations of Pencil Probes?
In the previous section, we highlighted the advantages of pencil ultrasound probes. However, like all medical devices, these probes also come with certain limitations that must be considered in clinical operations.
1- Lack of Anatomical Imaging
The first limitation is the lack of anatomical imaging. When it comes to pencil ultrasound probes, most expect devices that generate real-time images of organs, tissues, and structures. Pencil probes, however, are designed with a different purpose: monitoring blood flow using continuous-wave Doppler.
2- Operator Dependency
Another important limitation is their operator dependency. Because pencil probes do not generate images, the accuracy of the Doppler signal depends heavily on the skill and experience of the operator.
For example, suppose the probe is placed at the wrong angle on a patient’s artery. In that case, the velocity readings may be misinterpreted as abnormal flow when, in reality, the vessel is healthy.
3- Wear and Calibration Drift
Finally, pencil probes are also subject to wear and calibration drift. Over time, frequent use can lead to changes in probe sensitivity or signal quality. However, it should be noted that this challenge is not unique to pencil probes; it applies to all types of ultrasound transducers.
The good news is that regular maintenance, such as careful cleaning, proper sterilization, and following manufacturer handling guidelines, can reduce these risks and extend the lifespan of the probe.
Why Pencil Probe Repair Matters
Although we have already discussed the importance of proper probe maintenance earlier, it is important to recognize that even the most careful handling cannot completely prevent wear. Frequent use in vascular labs, outpatient clinics, and hospitals often exposes pencil probes to heavy workloads. As a result, issues such as crystal wear, cable damage, or signal degradation can appear.
This is why healthcare facilities, physicians, and diagnostic centers need to apply for regular probe repair services. Routine testing ensures that the probe continues to provide accurate images and allows technicians to detect small problems before they escalate. In many cases, when issues are identified early, they can be fixed without the need for replacement, saving both time and cost. By and large, Regular repair services not only restore performance but also provide peace of mind that the device is safe and reliable for patient care.
Refurbished Pencil Probes: A Cost-Effective Option
Despite the availability of high-quality repair services from providers like Elzhen, there are situations where a probe may not be fully restored. Some problems may be repetitive, or the damage may be too severe for repair. In such cases, replacing the device with a brand-new probe can be very costly, especially for smaller clinics or facilities with budget limitations.
Fortunately, there is another solution: refurbished pencil probes. Thanks to trusted providers like Elzhen, hospitals and diagnostic centers can access fully tested, calibrated, and certified refurbished probes. These devices deliver the same high performance as new ones but at a significantly lower price. Therefore, by choosing refurbished probes, healthcare facilities not only save on equipment costs but also reduce waste, making it a practical and sustainable option in modern medical practice.
Final Thoughts on Pencil Probes
Although pencil transducers cannot match the detailed imaging of other ultrasound probes, they excel in capturing real-time blood flow with accuracy. Their slim design, high sensitivity, and cost-effectiveness make them particularly valuable in vascular and cardiovascular assessments.
While some limitations exist, proper care and the option of affordable refurbished replacements ensure they remain dependable over time.
