Transducer Failure Causes and How to Prevent Them
It’s no secret that ultrasound transducers play a vital role in medical imaging, and any malfunction can pose a serious risk to patient safety. That’s why it’s so important to understand transducer failure causes, how to spot the warning signs, and what steps you can take to prevent or fix the issue.
In this article, we’ll take a closer look at the common causes of ultrasound transducer problems, how to identify them, and effective ways to address these issues.

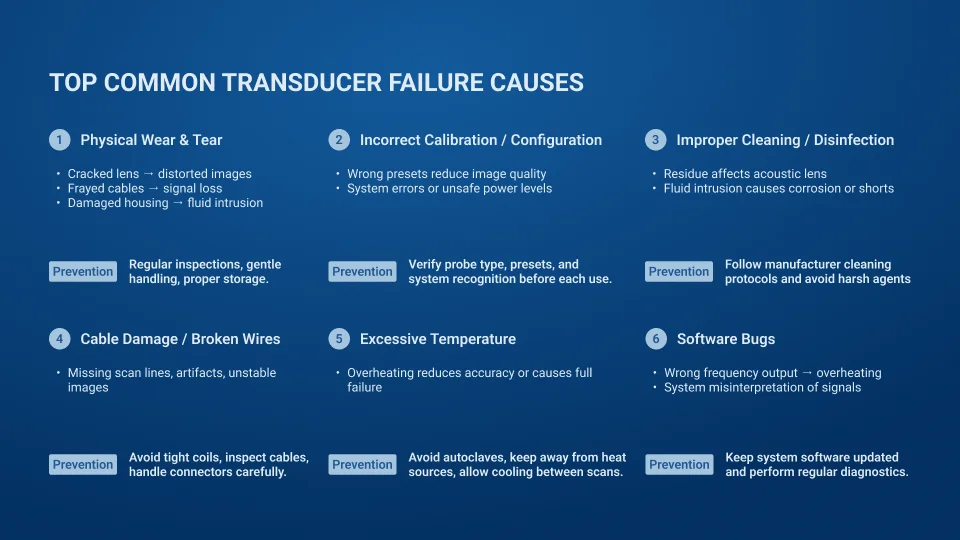

Top Common Transducer Failure Causes
Ultrasound transducers, which come into both direct and indirect contact with internal organs, are among the most sensitive medical devices. As such, they are vulnerable to various types of failure. Several factors can contribute to these issues. Below is an overview of the most common transducer failure causes. By addressing and preventing these factors, you can not only extend your device’s lifespan but also help ensure patient safety.
Physical Wear and Tear
One of the most common causes of transducer failure is aging and physical wear and tear. This refers to the gradual degradation over time due to regular use, frequent handling, and exposure to environmental stressors.
Physical wear can significantly compromise both the performance and safety of the transducer. Typical signs include:
- A cracked or worn acoustic lens can distort ultrasound images and reduce diagnostic accuracy.
- Frayed or damaged cables often lead to signal loss or visual artifacts.
- Bent or corroded connector pins can cause unreliable or failed communication with the ultrasound system.
- Cracks in the housing or failed seals may allow fluid intrusion and result in internal electrical damage.
Each of these issues not only reduces image quality but also increases the risk of patient safety, equipment downtime, and costly repairs or replacements.
Incorrect Calibration or Configuration
One of the common transducer failure causes is using the wrong calibration or configuration.
This happens when the settings are not properly aligned between the transducer and the ultrasound machine. For example, the system might not correctly recognize the probe, or the wrong probe type might be selected. It can also occur if system presets, such as frequency, depth, or focus, don’t match the transducer’s specifications. These mismatches can lead to poor image quality or even system errors.
Additionally, it may cause the machine to apply incorrect power levels or frequencies, potentially damaging the probe or affecting patient safety.
Improper Cleaning or Disinfection
Improper cleaning or disinfection of an ultrasound transducer refers to the incorrect or insufficient removal of biological contaminants, gel residue, or disinfectant chemicals after patient use. Specifically, this can include using the wrong cleaning agents, skipping steps in the disinfection process, or applying excessive moisture or force during cleaning.
When cleaning is done improperly, residues can build up on the acoustic lens, affecting image quality by scattering or blocking sound waves. Moreover, fluid can seep into the probe housing or connectors, leading to internal corrosion, electrical shorts, or even total malfunction. These issues are among the most common transducer failure causes in clinical settings.
In addition, inadequate disinfection poses a serious risk of cross-contamination, putting patients at risk of infection.
Excessive Temperature
Another factor that can cause failure in ultrasound transducers is excessive heat. For example, prolonged scanning, autoclaving, or placing the probe near a heat source can raise the temperature beyond safe limits. As a result, the internal components, especially the piezoelectric crystals and bonding materials, may get damaged. This can lead to poor image quality, incorrect results, or even complete probe failure. In addition, high temperatures can weaken the outer casing and seals.
Cable Damage or Broken Wires
Cable damage or broken wires in ultrasound transducers is a common issue, often caused by frequent bending, twisting, or improper handling. When the internal wires break or lose connection, the signal between the transducer and the ultrasound machines becomes unstable and untrackable. This can result in poor image quality, missing scan lines, or artifacts on the screen.
Over time, if the problem isn’t addressed, it may lead to incorrect diagnoses or even complete transducer failure. That’s why regular inspection and careful handling of the cable are essential to maintain reliable performance.
Thermal Cycling
Thermal cycling in ultrasound transducers describes the process of repeated heating and cooling during regular operation. Each time the transducer is turned on, it generates heat as the piezoelectric crystals vibrate to produce sound waves. When the device is turned off or rests, it cools down. This constant temperature change causes the materials inside the probe to expand or contract over time. Since different parts expand at different rates, thermal cycling can create stress, leading to cracks, weakened bonds, or damage to internal connections. Over time, this becomes one of the common transducer failure causes, as these internal stresses gradually degrade the probe’s performance and reliability.
Software Bugs
Last but not least, software bugs are among the less visible yet important causes of transducer failure. Transducers often rely on software to process signals, control operations, and manage calibration. When there is a bug, the software may send incorrect commands or interpret sensor data. As a result, the transducer or probe may function improperly or even become damaged. For example, in an ultrasound machine, a software error could cause the transducer to operate at the wrong frequency, leading to overheating over time. Therefore, software issues can still lead to failure even if the hardware functions well. Regular updates and proper software testing are essential to prevent such problems.
General Signs of Transducer Failure
So far, we’ve covered the most common transducer failure causes. Now, let’s take one step further and identify the signs and warnings. Sometimes, determining the issue early can save time and money by allowing for probe repair instead of replacing the device altogether.
There are different types of ultrasound transducers, like convex, linear, TEE, and endocavitary. Each of these probes is used for specific types of medical examination. Because of their different shapes and functions, the signs of failure can vary from one probe to another. For instance, a TEE probe might show different issues compared to a convex probe. That said, there are also some general signs of transducer problems that are common across most types, such as:
- Blurry or low-quality images
- Black lines or missing parts of the image (dropouts)
- The probe is getting unusually hot
- Strange artifacts or image distortions
- Weak or inconsistent Doppler signals
- Cracks or visible damage on the probe surface
- Damaged or bent cable
- The image cuts in and out when moving the cable
- Probe fails system tests or diagnostics
How to Troubleshoot Transducer Failure Causes
In this article, we discussed the transducer failure causes and the general warning signs to look out for. As you know, ultrasound transducers are both delicate and expensive devices. That’s why hospitals, clinics, and medical professionals need to follow the specific guidelines for each probe to avoid potential damage.
While some transducer failures may be unavoidable over time, following proper care routines and using specialized tools can significantly extend their lifespan. One helpful tool is the Elzhen 2200 smart transducer analyzer. Just as a transducer is used to examine the human body, the Elzhen 2200 is designed to examine the transducer itself, helping detect issues early and ensure the device performs accurately.
