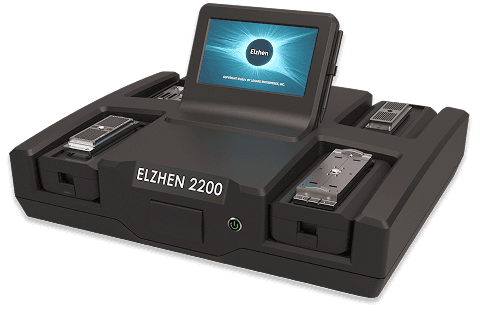

Elzhen 2200 Smart Transducer

Analyzer

Portable AnalyserMulti-Brand CompatibleCloud Reporting

Is Elzhen 2200 Right for Your Organization?

Elzhen 2200 is designed for hospitals, biomedical engineering teams, ultrasound service providers and manufacturers, probe repair companies, and imaging centers.

Hospitals

Maintain diagnostic confidence by identifying transducer issues early and supporting preventive maintenance.

Biomedical Engineering Teams

Quickly evaluate probe health, troubleshoot failures, and make informed maintenance decisions.

Probe Repair Companies

Verify probe performance before and after repair with objective acoustic and electrical testing.

Ultrasound Service Providers

Deliver fast, repeatable transducer testing to improve service quality and customer confidence.

Ultrasound Manufacturers

Support quality assurance, product validation, and transducer performance throughout production.

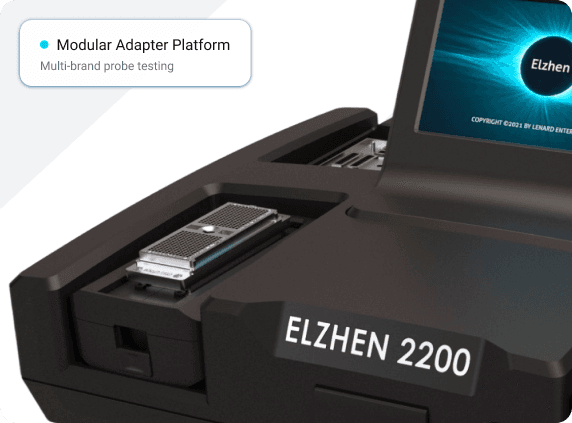

Find the Right Transducer Adapter

Elzhen 2200 supports a wide range of transducer adapters, making it easy to test compatible probes from leading ultrasound manufacturers.

01 / 06

Interchangeable Module

GE Healthcare

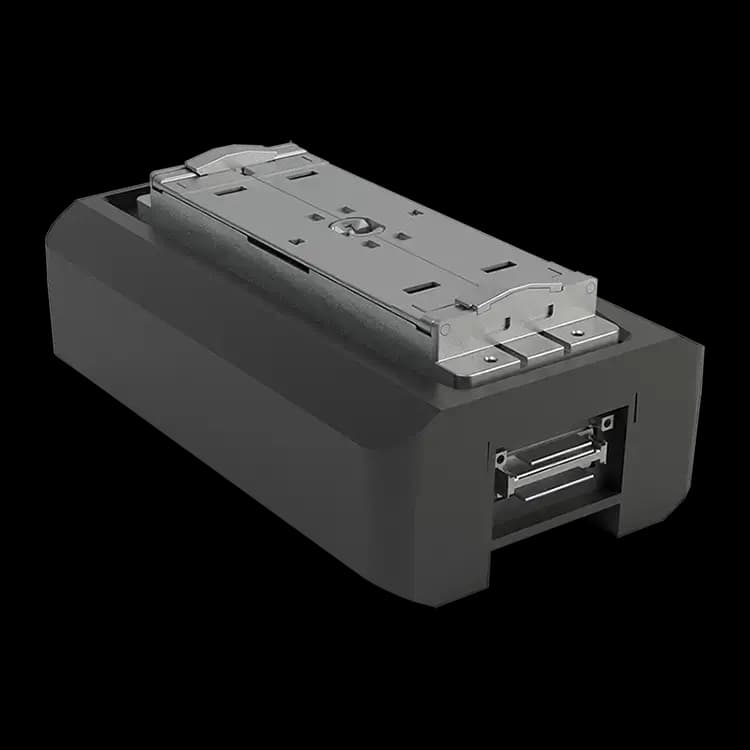

Pinless Connector

Probe Adapter

02 / 06

Interchangeable Module

GE Healthcare

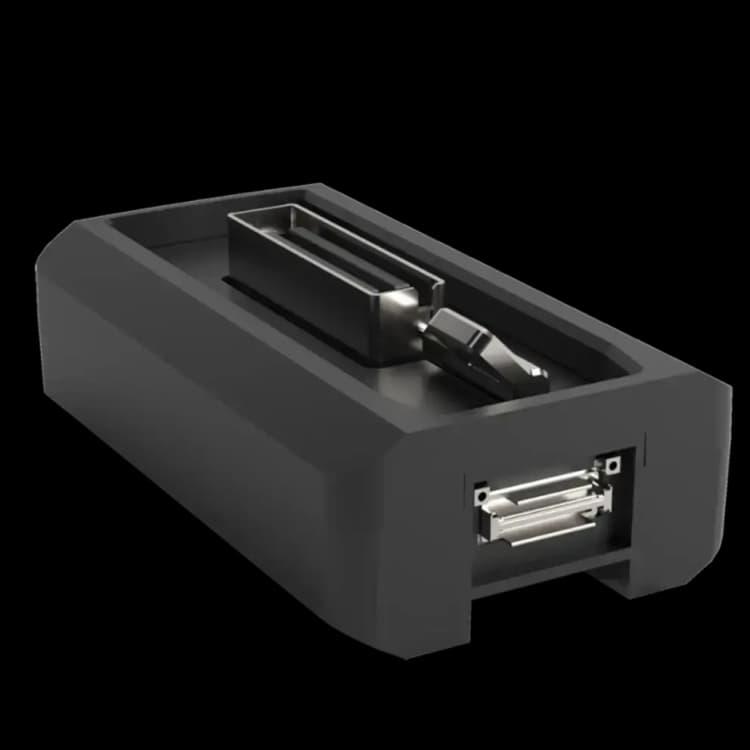

Compact Connector

Probe Adapter

03 / 06

Interchangeable Module

GE Healthcare

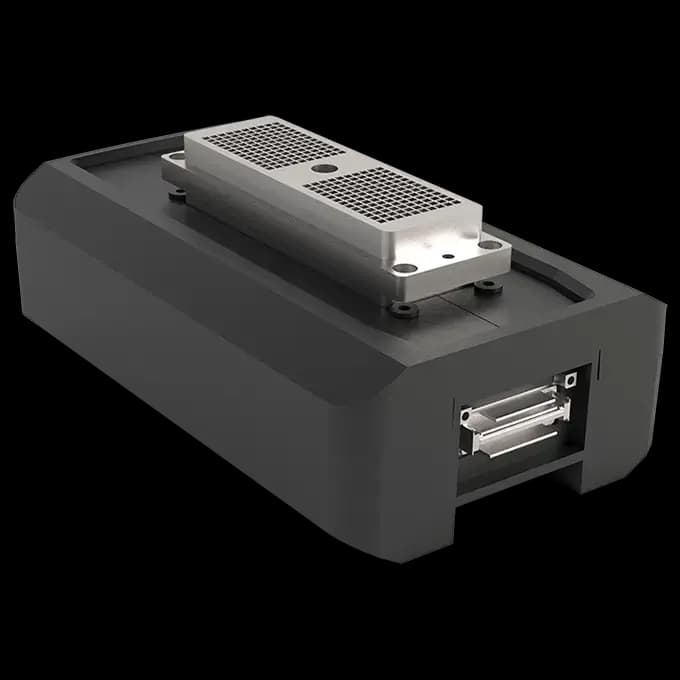

Pin Connector

Probe Adapter

04 / 06

Interchangeable Module

Philips

Compact Connector

Probe Adapter

05 / 06

Interchangeable Module

Fujifilm Sonosite

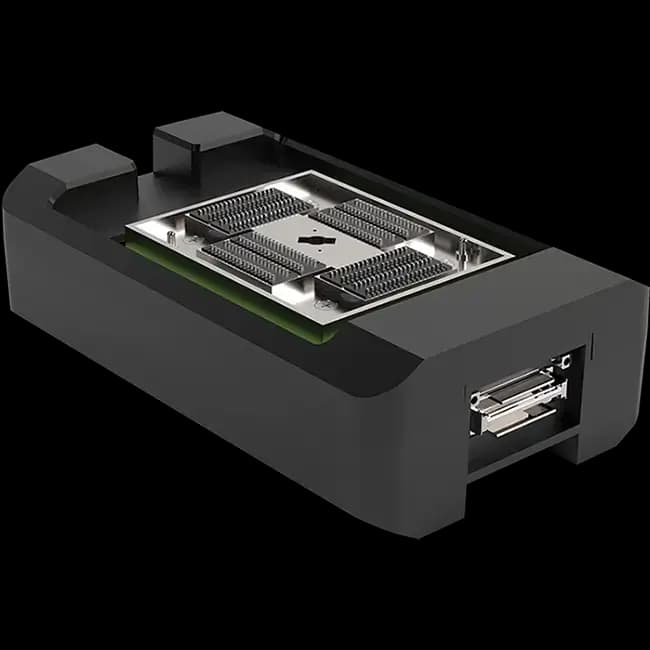

Large Connector

Probe Adapter

06 / 06

Interchangeable Module

Fujifilm Sonosite

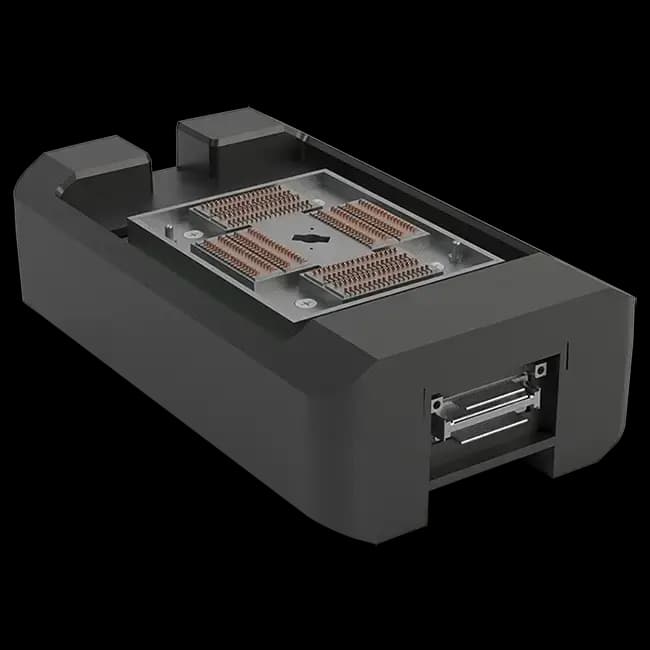

Small Connector

Probe Adapter

ELZHEN

Ultrasound Probe Testing

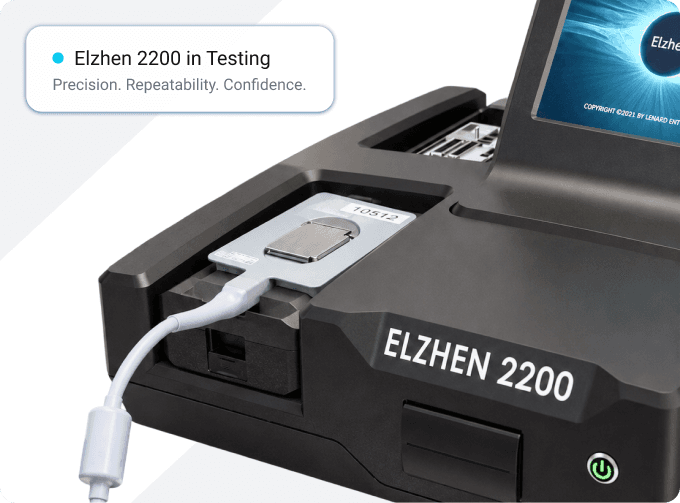

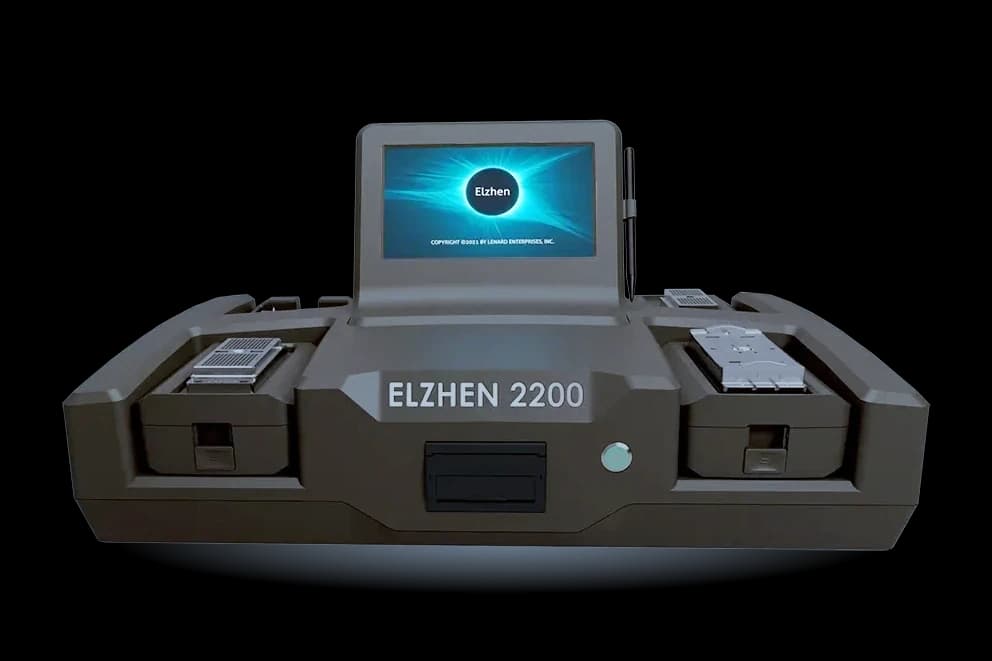

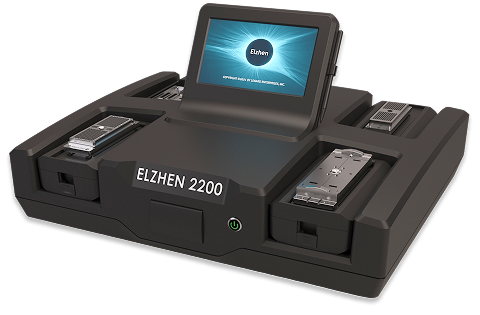

Elzhen 2200 Smart Transducer Analyzer

Portable AI-driven cloud-powered testing for most major ultrasound probe brands

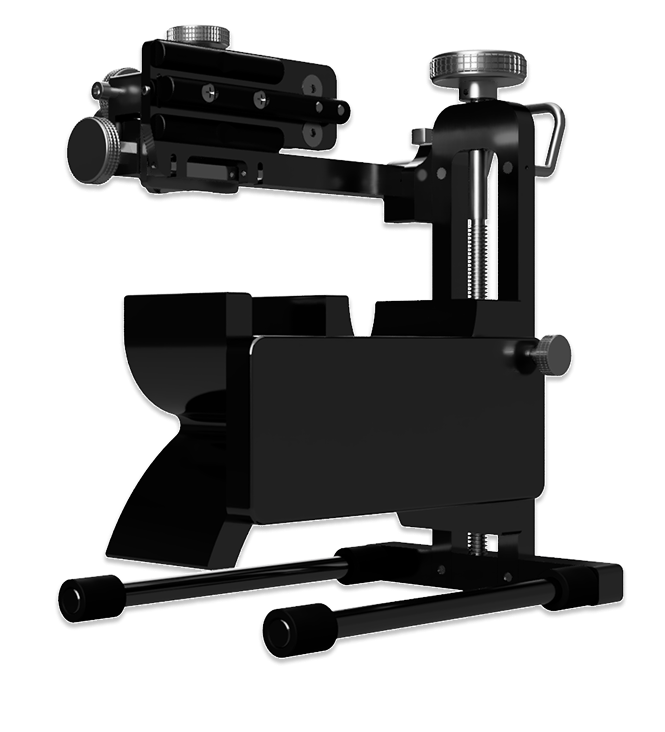

Ariana Ultrasound Reflector

Effortlessly measure and track repeatable acoustic and electrical parameters over time.

Compatible with Major Ultrasound Probe Families

The Elzhen 2200 supports major probe families through a comprehensive range of interchangeable adapters, making it easy to analyze compatible transducers with accurate, repeatable acoustic and electrical testing.

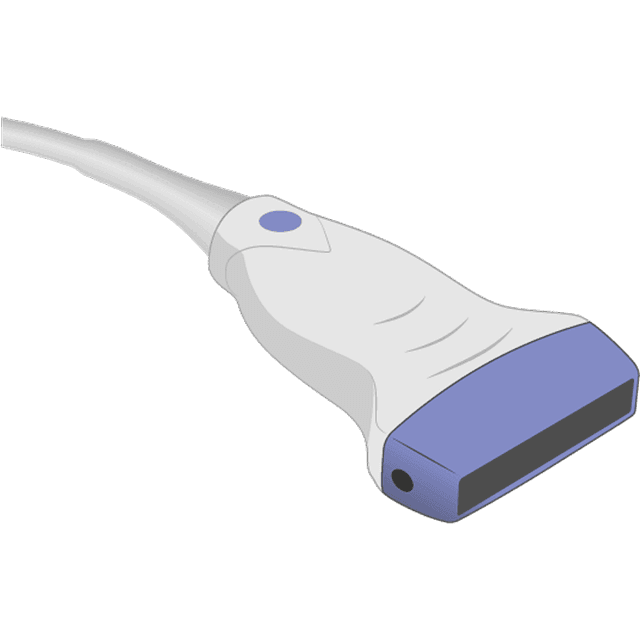

Linear

High-resolution imaging for vascular, musculoskeletal, breast, thyroid, and other superficial examinations.

Adapter supported

Micro Convex

Compact imaging for pediatric, neonatal, transcranial, and small-parts examinations.

Adapter supported

Pinless Connector

Wide-field imaging for abdominal, obstetric, gynecological, and general ultrasound examinations.

Adapter supported

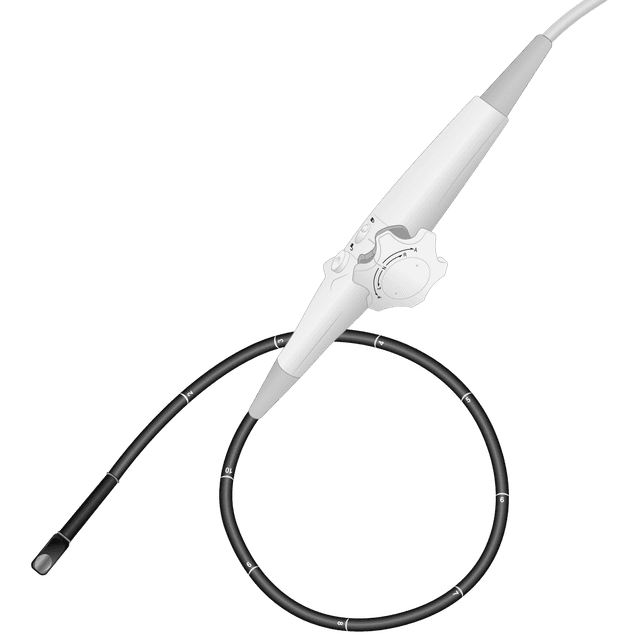

TEE Phased Array

Transesophageal cardiac imaging for detailed assessment of heart structures and function.

Adapter supported

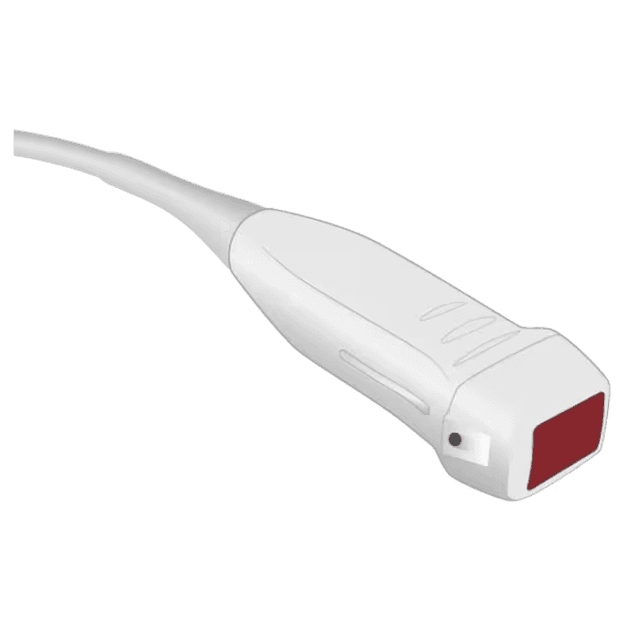

Phased Array

Cardiac imaging with a compact footprint for echocardiography and intercostal examinations.

Adapter supported

Intraoperative Linear

High-resolution imaging for intraoperative procedures and precision surgical guidance.

Adapter supported

Operating the Elzhen™ 2200

From Setup to Cloud Sync

Start the System

Power on the analyzer and connect to the network.

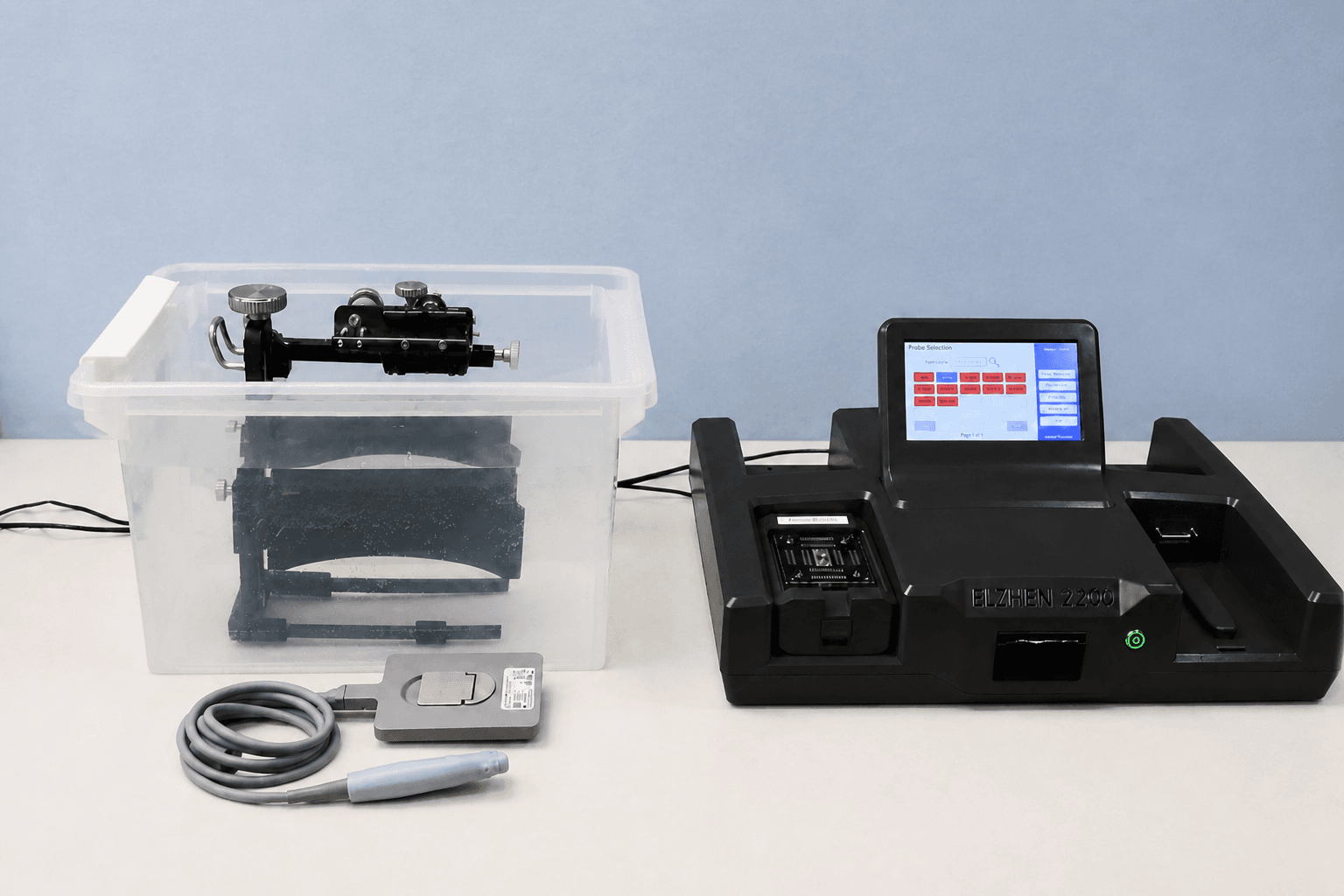

Install the Adapter

Insert the compatible adapter for your transducer.

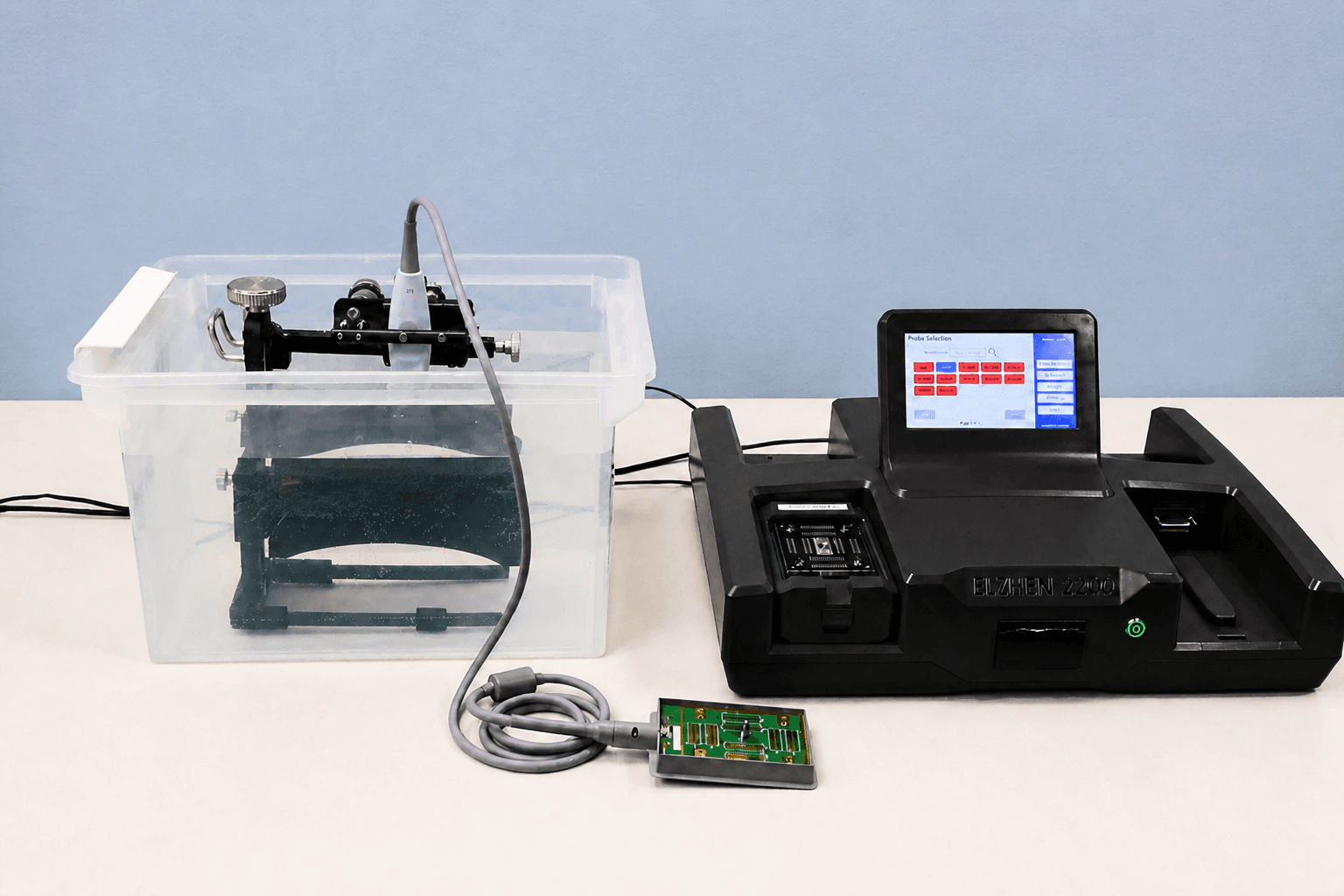

Position the Probe

Place and align the transducer using the Ariana Ultrasound Reflector.

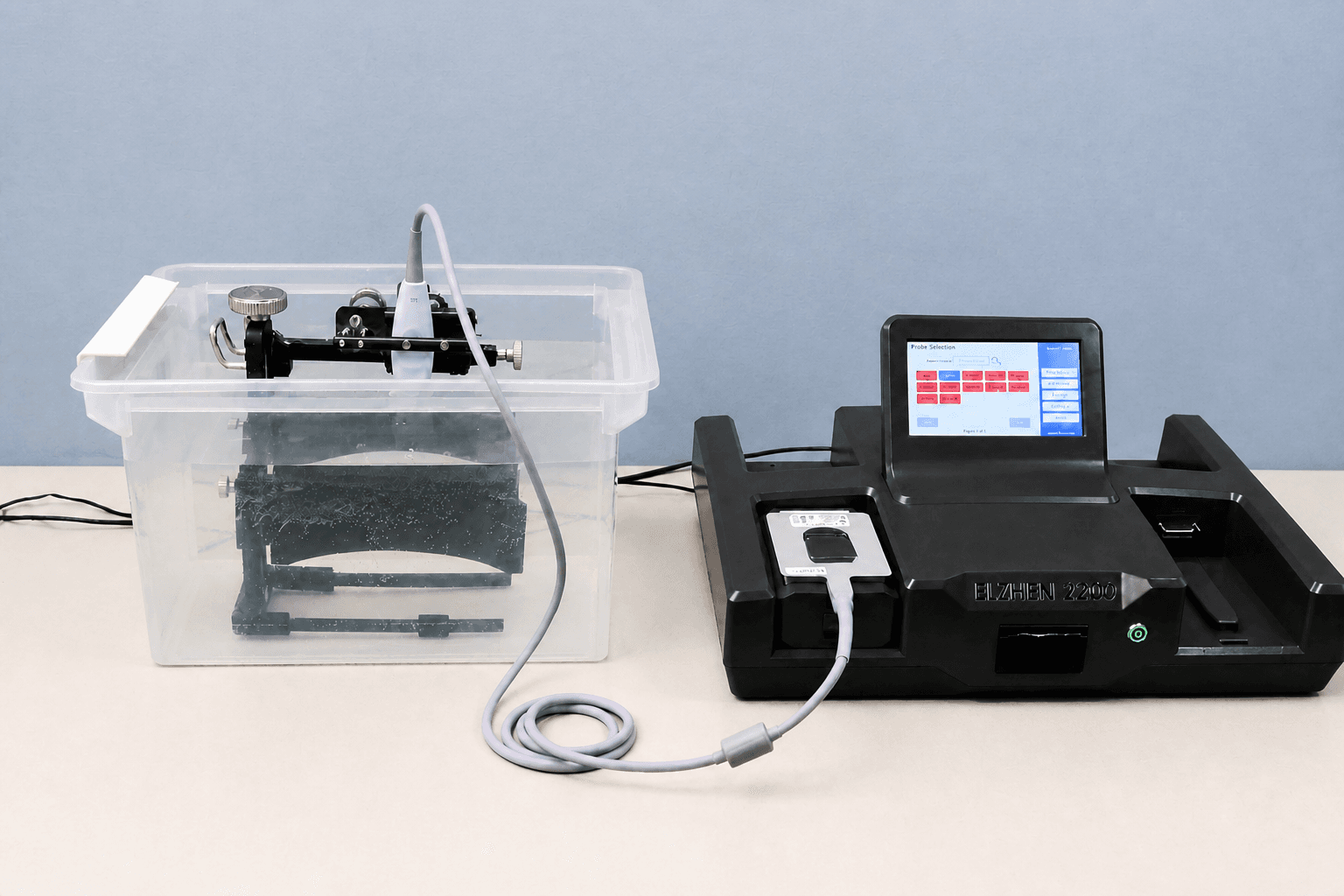

Connect the Probe

Securely connect the transducer to the installed adapter.

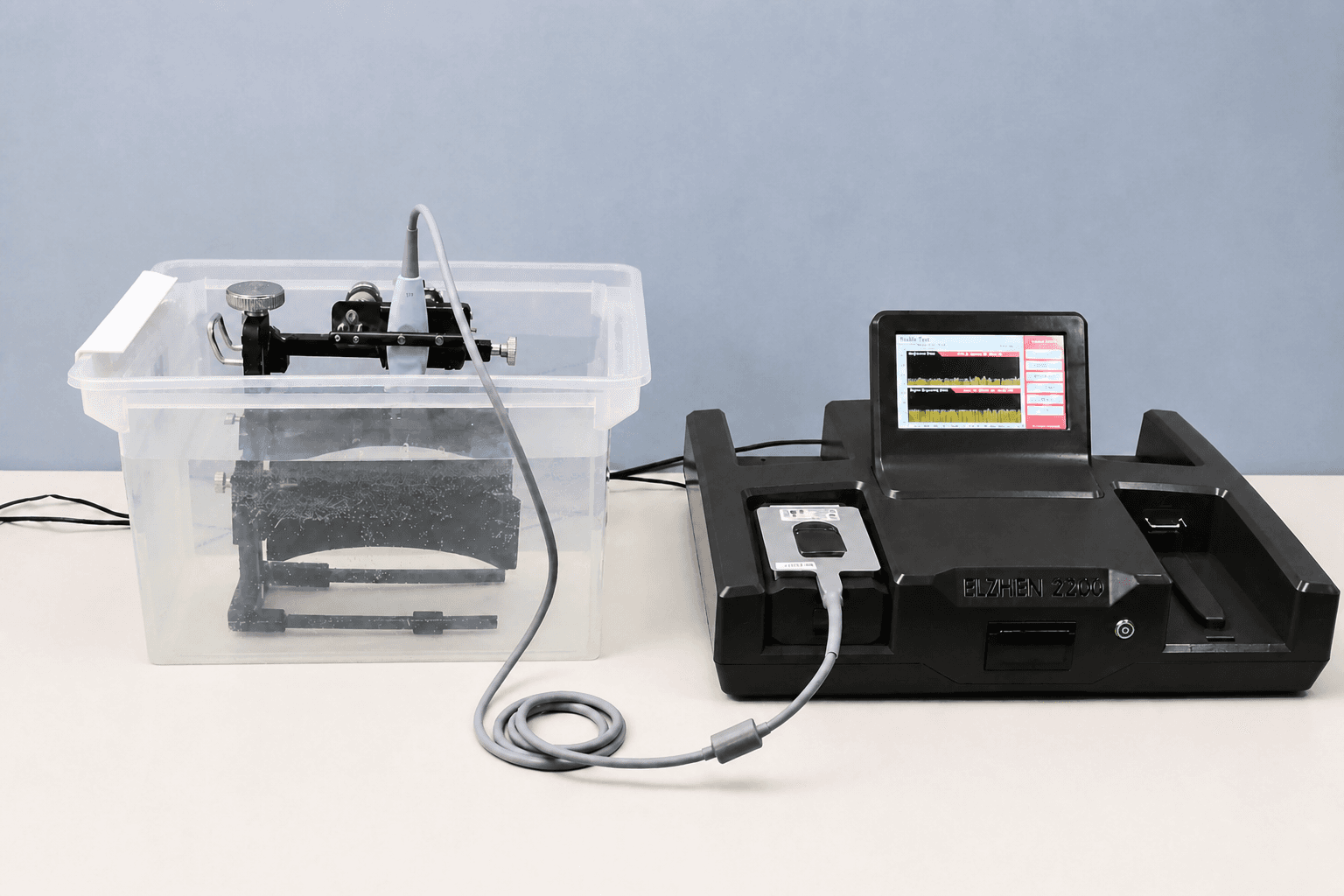

Test

Run acoustic and electrical tests and review your diagnostic report.

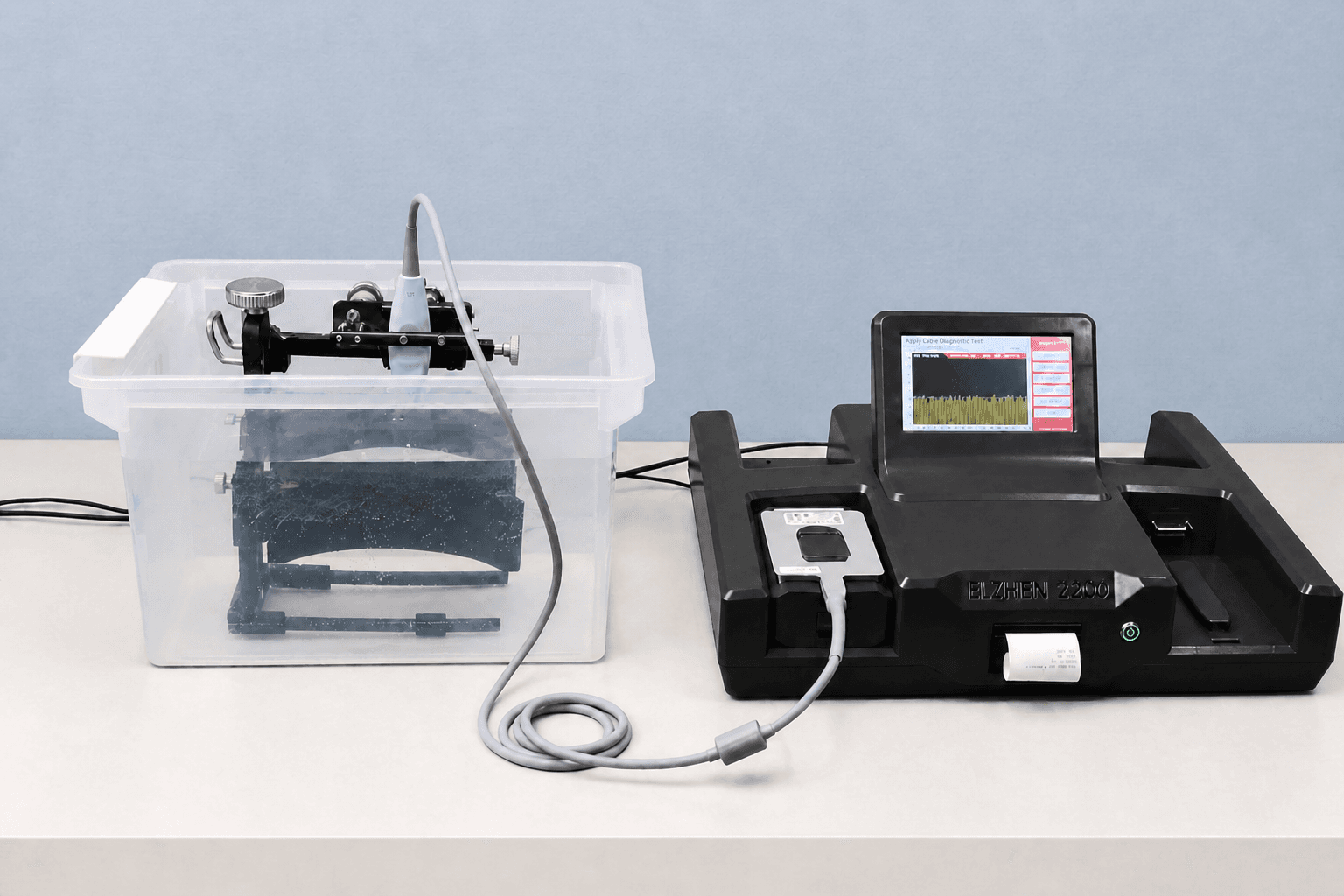

Print your Report

Sync the test results to the cloud, review the diagnostic report, and print a copy for your records.

01/06

Variety of Test Modes

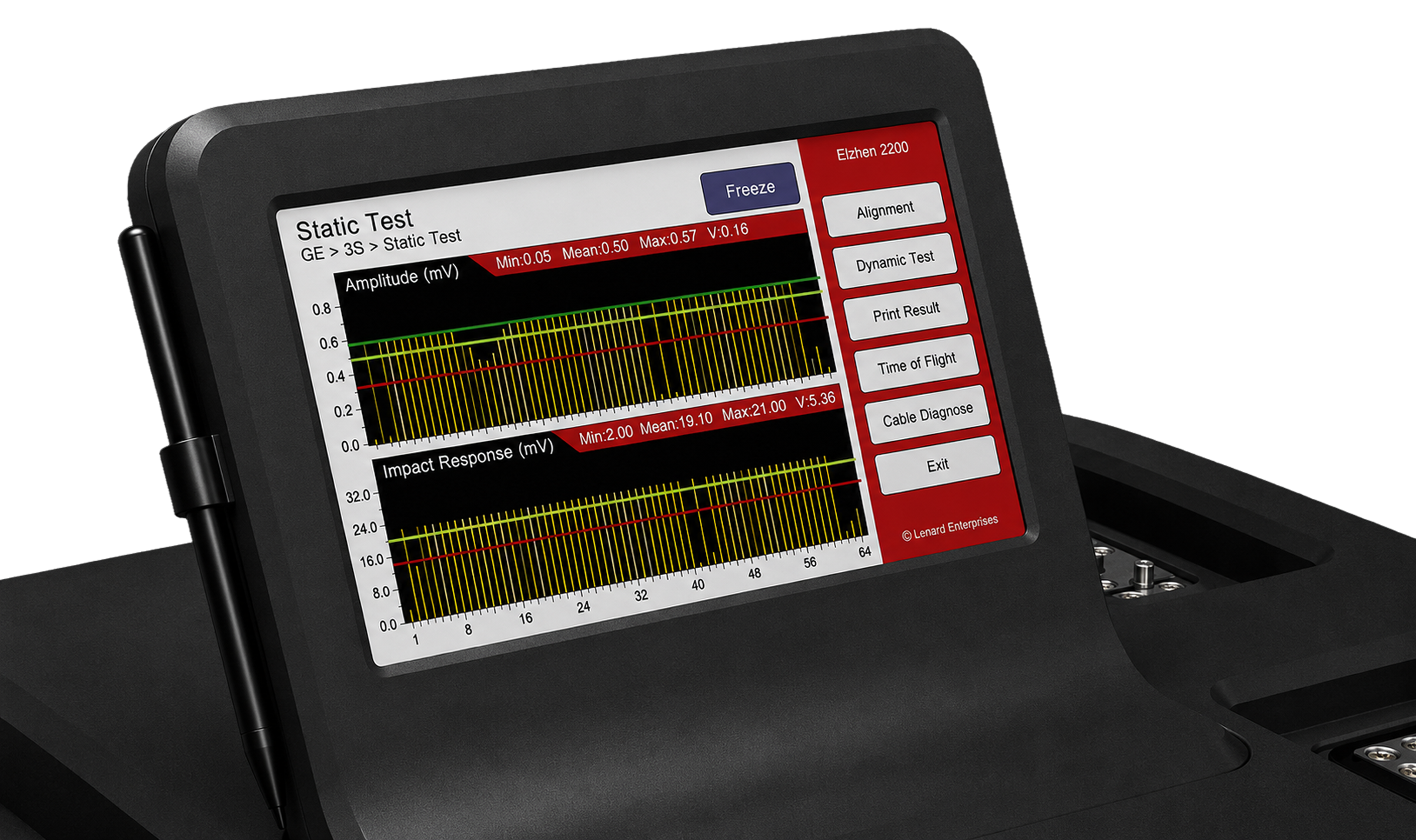

Static Amplitude

The static amplitude test measures the echo intensity of individual elements within a transducer array, indicating the peak-to-peak voltage (Vpp) of each element. This test ensures that only minor variations in signal amplitude are acceptable among fully functional transducer crystals, aiming for uniform echo intensity across the array.

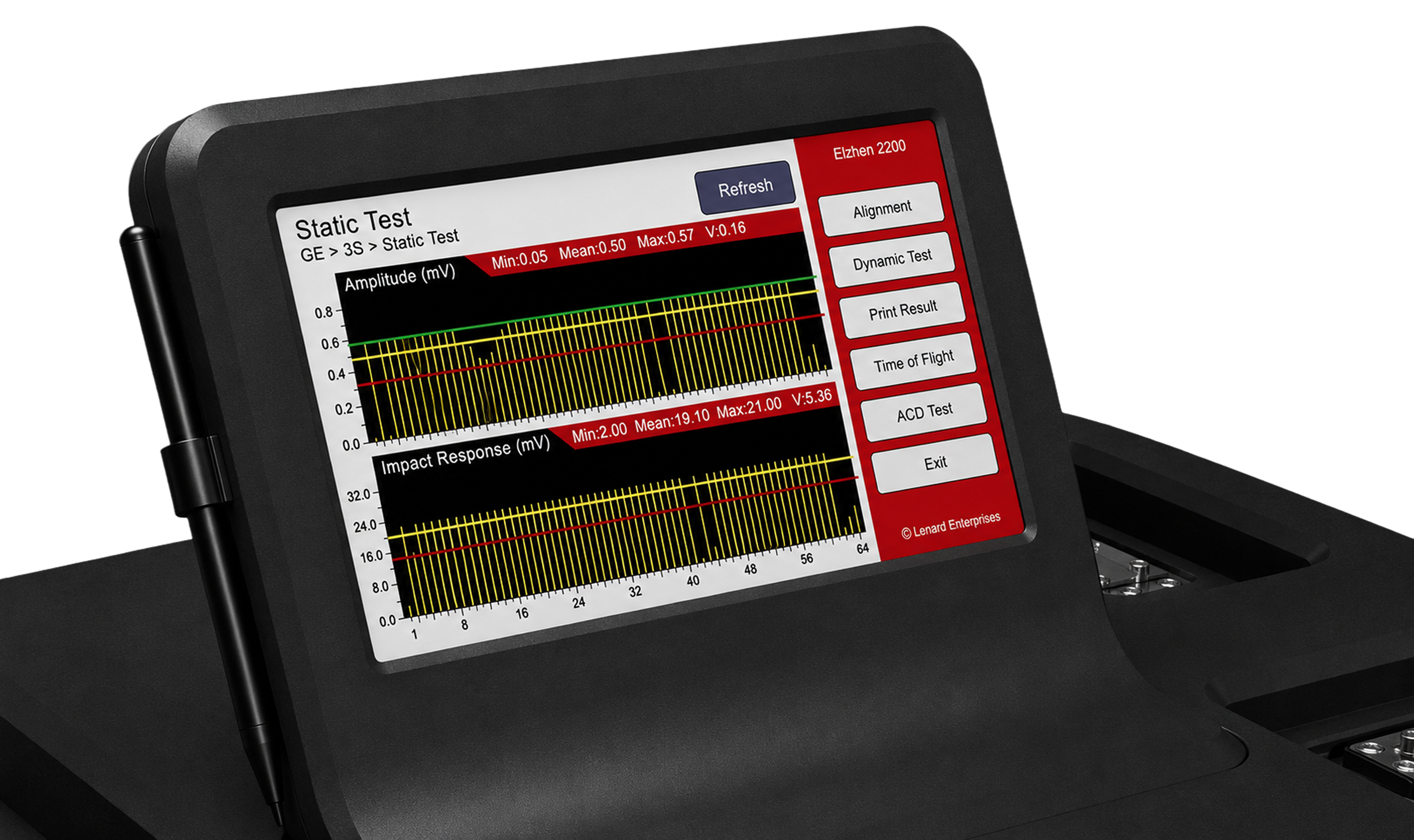

Impact Response

This mode examines the impact responses of piezoelectric ceramic elements (PCE) and presents a bar graph based on impact response intensity amplitude to predict transducer health, including that of the acoustic array, transducer cable and connector.

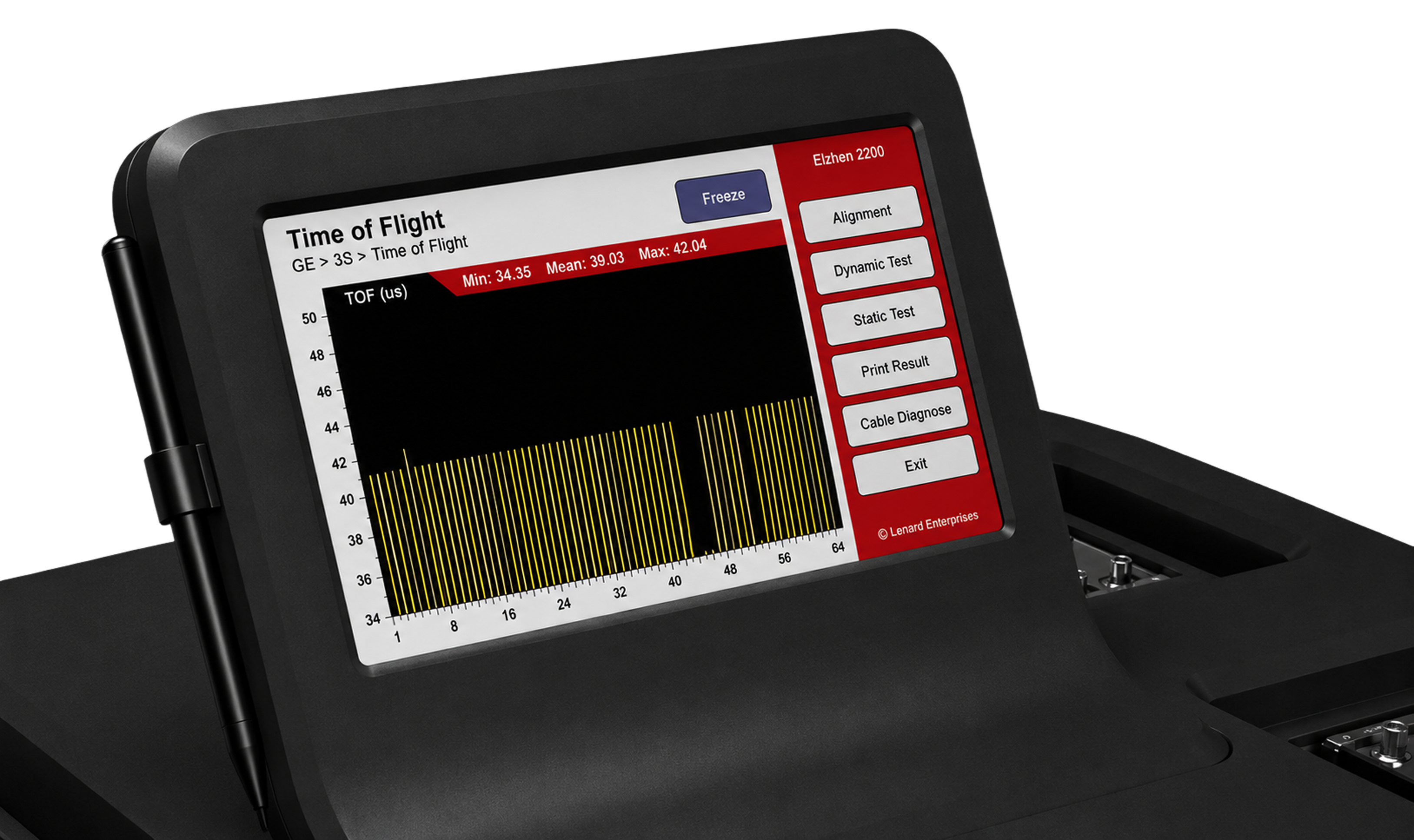

Time of Flight (TOF)

This mode examines the time of flight (micro seconds) of echo signals and presents a bar graph based on signals’ travel time from the probe lens back to the reflector.

Dynamic Amplitude

The dynamic amplitude measures the echo intensity of individual elements. Element amplitude is a measure of the echo intensity signal (peak-to-peak voltage - Vpp) of the individual elements within the transducer array. Only minor variations in the signal amplitude of any given transducer crystals within a fully functional array are accepted.

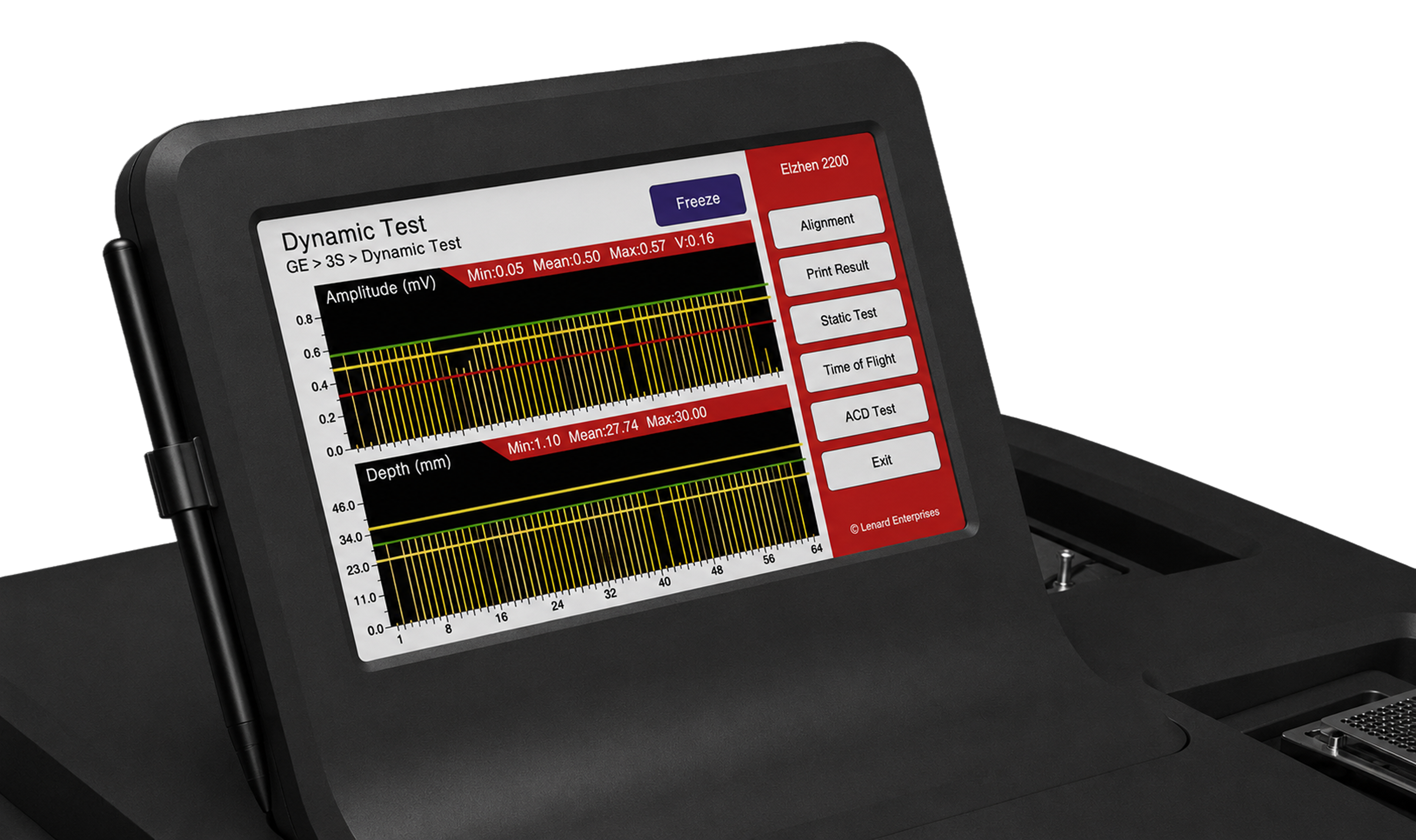

Dynamic Depth

The dynamic amplitude measures the echo intensity of individual elements. Element amplitude is a measure of the echo intensity signal (peak-to-peak voltage - Vpp) of the individual elements within the transducer array. Only minor variations in the signal amplitude of any given transducer crystals within a fully functional array are accepted.

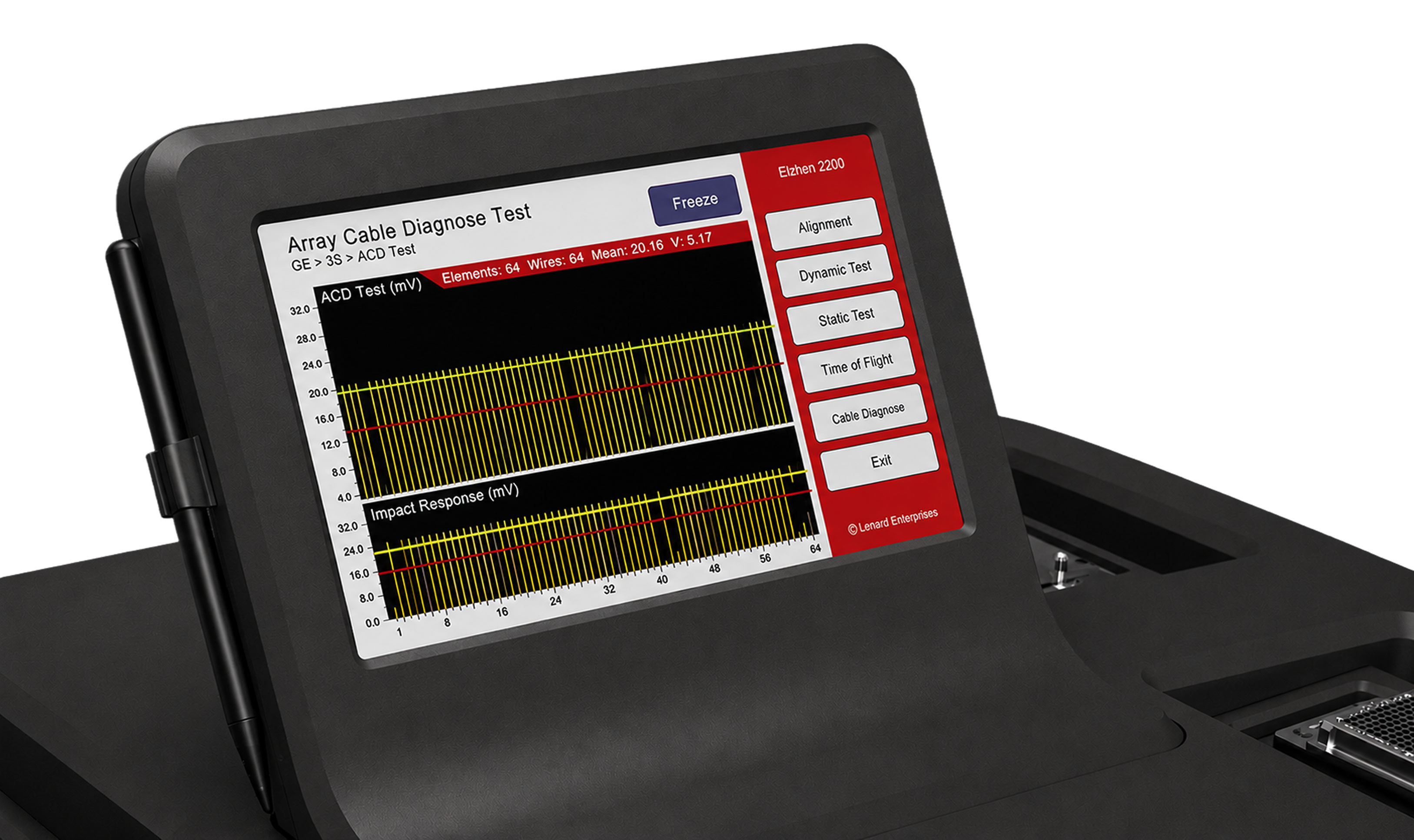

Array Cable Diagnostic (ACD)

This mode examines the impact responses of individual elements across an array and presents a real-time/live bar graph based on impact response intensity amplitude to predict transducer health, including that of the acoustic array, transducer cable and connector.

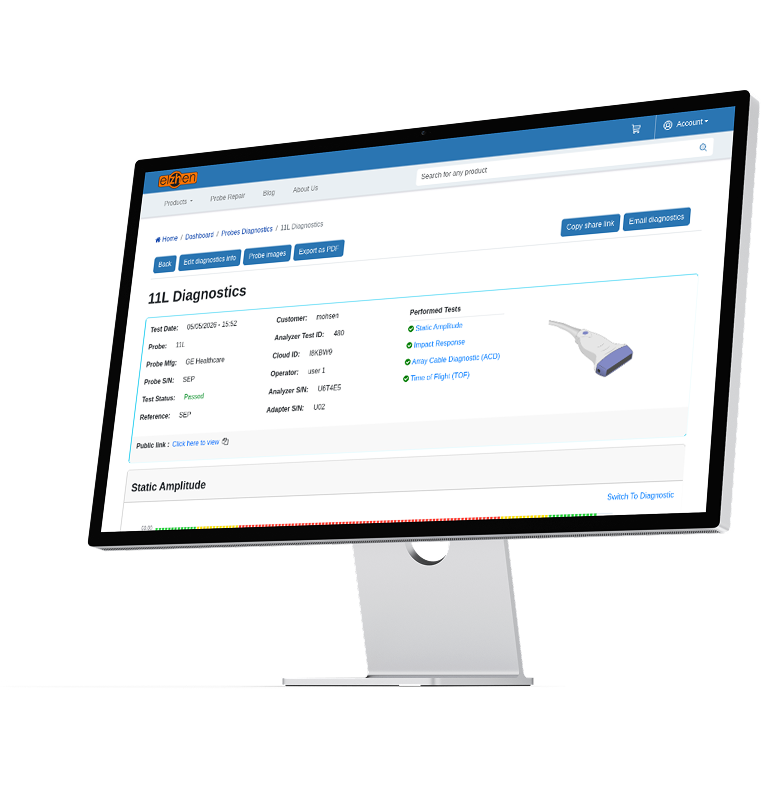

CLOUD REPORTING

Elzhen Cloud Account

The Elzhen 2200 Analyzer Cloud offers a secure and intuitive way to store, review and manage all diagnostic data from your Elzhen 2200 Analyzer.

Each test is automatically synchronized and safely stored online, allowing users to access reports anytime, from anywhere.

Through a simple dashboard, users can monitor probe performance, compare test results, and delete outdated records with ease giving full control over diagnostic data.

Secure Storage

Store and review diagnostic data in one place.

Auto Sync

Each test is automatically synchronized to the cloud.

Report Management

Monitor performance, compare results, and manage records.

REPORT BRANDING

Custom Report Branding

Customize diagnostic reports with your logo, company information, and contact details to create professional reports that strengthen customer trust.

Add Your Logo

Display your company logo on every diagnostic report.

Add Company Information

Include your business name, website, contact details, and custom footer notes.

Strengthen Customer Trust

Deliver polished, branded reports that reinforce your expertise with every diagnostic test.

START YOUR CONFIGURATION

Configure & Order Your Elzhen 2200

Choose the plan and compatible transducer adapters that best fit your workflow, then complete your configuration in just a few steps.

Basic

Standard

Premium

Ultimate

Pro

How it works

Select a plan

Select the plan that meets your workflow.

Select Compatible Adapters

Add the adapters required for your transducers.

Review Your Configuration

Review your setup and continue.

Configure Your System

Your Configuration

Analyzer

Plan

Adapters+

Adapter support includes:

GEPHILIPSSIEMENSSonoSite+ More

Trusted by Professionals Worldwide

Multi-Brand Compatibility

AI-Assisted Analysis

Cloud Reporting

Dedicated Technical Support

Guided Demo Experience

Discover Elzhen 2200 Through a Live Demo

Discover how Elzhen 2200 works in real diagnostic workflows. Explore testing, reporting, cloud features, and adapter compatibility with guidance from our specialists.

Live demonstration with our specialists

Real testing and reporting workflows

Answers tailored to your application

Guided Demo Experience

Book a Personalized Demo of Elzhen™ 2200

Meet One-to-One with an Elzhen Specialist

Tell us about your needs and we'll arrange a personalized session to show how Elzhen 2200 can support your workflow.
